About STREET - LED LIGHT

Future of street lighting, LED Street Lights comes in all-weather non-corrosive water proof metal housing with powder coating for long life. The light houses high lumens LED & imported chip package for best performance & life.

Applications

  • Street
  • Industry
  • Highways
  • Out Doors
  • Stadiums
  • Park

Colors

  • LED Series colors

Products

  • 90W STREET LIGHT

Product Code

  • SP-SL-90W

Buy Now at:

Features & Benefits

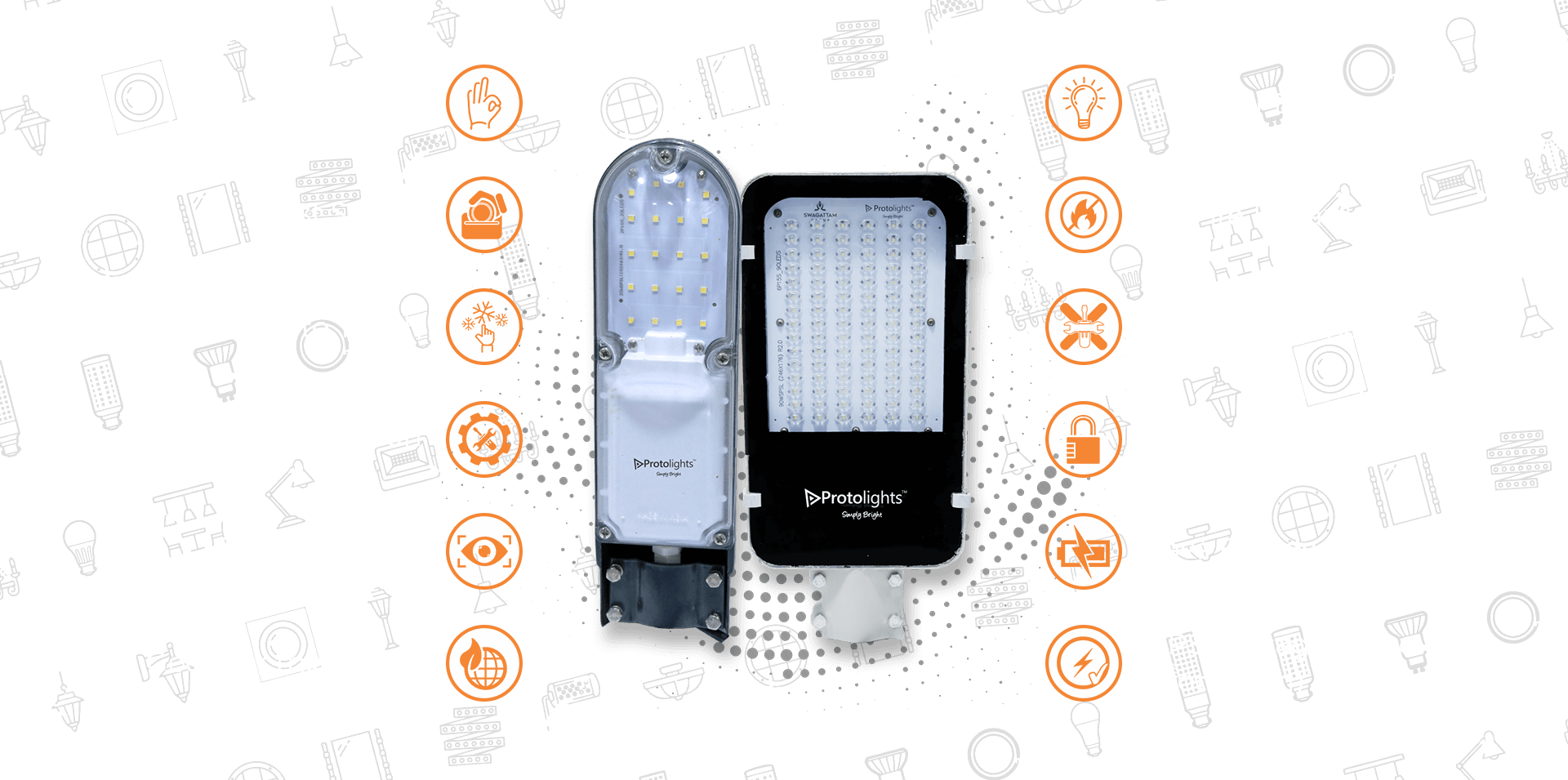

Great in severe conditions strong structure function excellent design in heat radiation performance, so that the temperature of the cover is low, which is safe and provide good protection made up of high quality, high temperature resistant polycarbonate in black colour efficient thermal management, sturdiness & excellent corrosion resistance high quality polycarbonate clear lens to ensure better uniformity of light distribution.

Product Details

Range Product Code Watt Case Size Lumens
15W SP-SL-15W 15-W 10 1500 lm
20W SP-SL-20W 20-W 10 2000 lm
25W SP-SL-25W 25-W 10 2500 lm
30W SP-SL-30W 30-W 10 3000 lm
48W SP-SL-48W 48-W 10 4800 lm
60W SP-SL-60W 60-W 10 6000 lm
70W SP-SL-70W 70-W 10 7000 lm
90W SP-SL-90W 90-W 10 9000 lm

Technical Specifications

Wattage CCT Dimension (mm) Technical Data IP Rating
15W 6500K/4000K/2700K 15 W - 275 L X 80 W X 62 H 110-265 VAC, PF >0.95, THD <20%, CRI -80, 4KV IP 65
20W 6500K/4000K/2700K 20 W - 275 L X 80 W X 62 H 110-265 VAC, PF >0.95, THD <20%, CRI -80, 4KV IP 65
25W 6500K/4000K/2700K 25 W - 275 L X 80 W X 62 H 110-265 VAC, PF >0.95, THD <20%, CRI -80, 4KV IP 65
30W 6500K/4000K/2700K 30 W - 325 L X 80 W X 62 H 110-265 VAC, PF >0.95, THD <20%, CRI -80, 4KV IP 65
48W 6500K/4000K/2700K 48 W - 400 L X 125 W X 85 H 110-265 VAC, PF >0.95, THD <20%, CRI -80, 4KV IP 65
60W 6500K/4000K/2700K 60 W - 400 L X 125 W X 85 H 110-265 VAC, PF >0.95, THD <20%, CRI -80, 4KV IP 65
70W 6500K/4000K/2700K 70 W - 400 L X 125 W X 85 H 110-265 VAC, PF >0.95, THD <20%, CRI -80, 4KV IP 65
90W 6500K/4000K/2700K 90 W - 480 L X 225 W X 80 H 110-265 VAC, PF >0.95, THD <20%, CRI -80, 4KV IP 65
